S3 Series, for simple and efficient self-cleaning!
Thanks to the use of a PLC to manageall automation, combined with a large graphic display, the use and maintenance of the self-cleaning toilet are extremely simple and intuitive.
S3 technology is
characterized by
S3 technology is characterized by:
Cleaning and disinfection
after each use in less than 35 seconds
Disinfection and drying of the facility’s surfaces
the toilet seat, to ensure maximum hygiene and comfort of use, and the floor surface to ensure a clean and welcoming toilet area for the next visitor.
Remote control telemetry system
Standard equipment includes a telemetry system for remote control of the toilet.
CE certified
The use of industrially produced components and moving parts that are CE certified and tested for millionfold use.
We offer models of our S3 series of self-cleaning toilets both FOR OUTDOOR public toilets, with a prefabricated concrete structure, or as INDOOR technological solutions where either you wish to revamp an existing room or integrate the toilet in a new construction.
Available with a sliding or swing door, the S3 series of self-cleaning toilets can be requested in the version with a single cubicle, or with several toilet cubicles or urinals.
Cleaning and disinfection
Cleaning and disinfection after each use in less than 35 seconds
Large
Large, no-touch display ensures extremely simple maintenance and management
Multiple solutions
Multiple solutions available with the addition of changing rooms, kiosks, vending machine areas, or showers
The self-cleaning toilets of the S3 series are perfect for all environments where public toilets are used frequently such as medium/large city centres, parks or car parks.
Choose The Right Level Of Risk For Different Chonks Of You Change
IN BRIEF
- Self-cleaning
- Accessible to all
- Washing cycle of less than 35 sec.
- Simple maintenance
FEATURES
- Vandal-proof and fire-proof
- Outdoor and Indoor solutions
- Protection against COVID 19
- Low water and energy consumption
SUITABLE FOR
- Towns
- Public parks
- Picnic areas
- Rest areas
HOW DOES S3 TECHNOLOGY WORK?
Entrance door
- Entrance to and exit from the toilet facility through an automatic sliding door* with aluminium cladding.
- Availability of door cladding in AISI 304 or 316 L stainless steel on request.
- The polypropylene honeycomb sandwich of the door’s internal structure is rust-proof and ensures high warp resistance.
- CE certified door movement, equipped with ananti-crushing safety device.

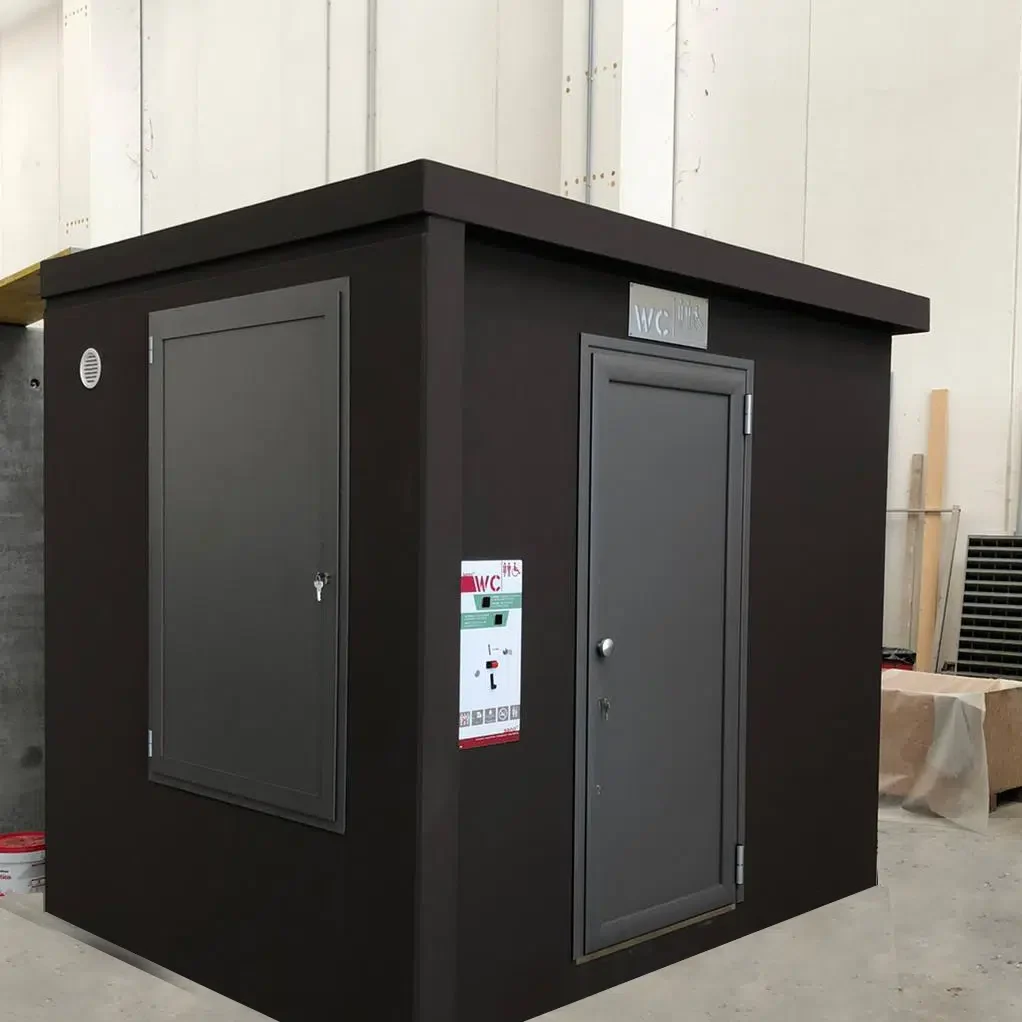

- *swing door on request
User detection presence
- 1 infrared sensor.
- Infrared sensor is recessed into the ceiling and is completely vandal-proof.
- Sensor complies with the EN 16005 standard; presence detection is monitored in accordance with European legislation.
Mazimum time of use
- When the door is closed, the user has a time of 15 minutes (programmable) for using the toilet.
- When the time expires, the door unlocks automatically inviting the user to exit.

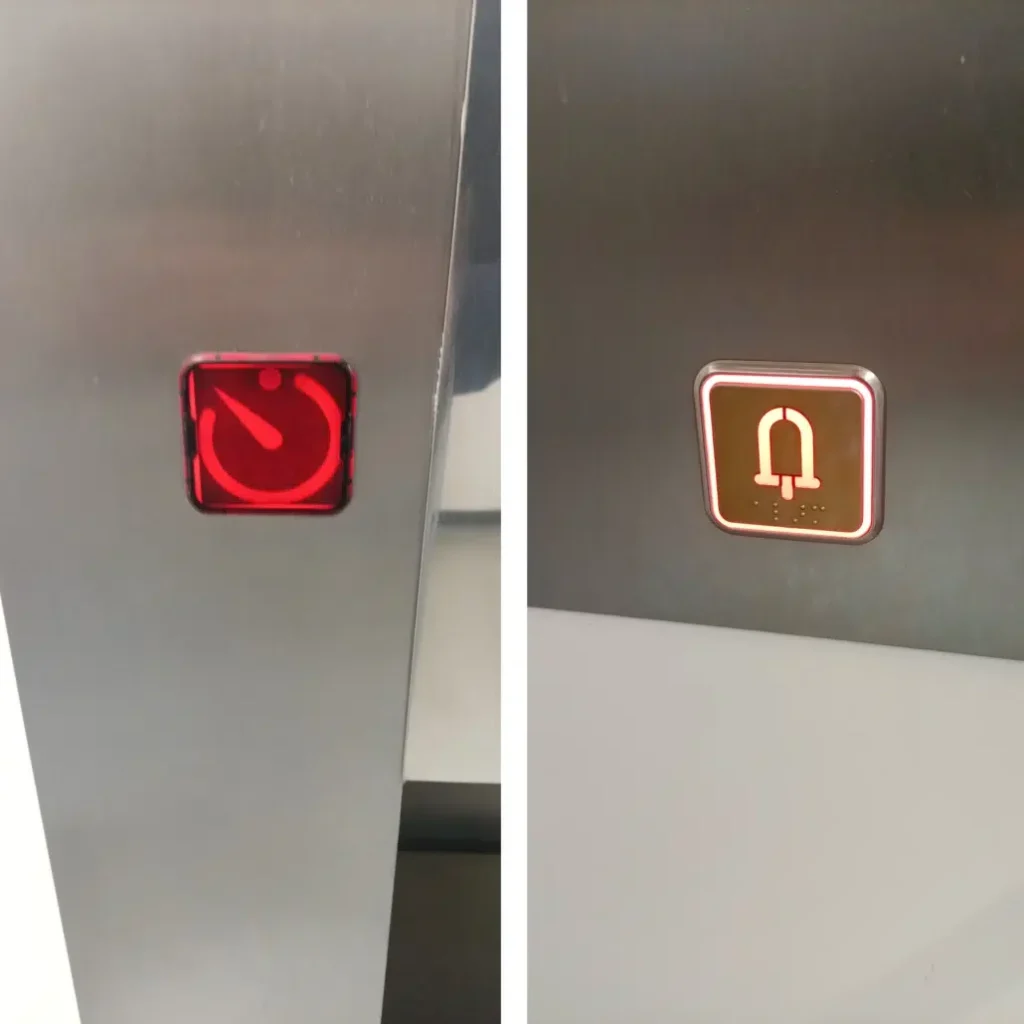

- An audible indicator signals that the time has expired and that the door opens, inviting the user to exit.
Automatic Cleaning
- Toilets equipped with S3 technology provide, after each use, washing and disinfection, drying of wc bowl seating surface, washing of the sink and washing with disinfection of the floor.
- The plant consists of:
- Static device integrated into the backrest, made of stainless steel, “EASYTECH®” for washing and sanitizing the toilet and for the automatic drying of the seat surface.
- Floor washing automatic device for, by nozzles that sprays high pressure nebulized water. Nozzles are of the flat jet axial delivery type, with a jet angle of 45 °.
SLEDTECH©
SLEDTECH© shifting system
Cleaning System
Floor washing / Cleaning
HYGIENE
The self-cleaning toilets with S3 technology guarantee a thoroughly washed and sanitized toilet facility after each use.
How does the washing cycle work?
While the toilet is in use: The inside of the toilet bowl is washed continuously by a micro-flush film of water After toilet use: When the visitor leaves, the toilet control system automatically locks the door and activates the automatic washing cycle which is split into 4 phases:
Thanks
To the partial overlap of the phases described above, the entire washing sequence takes about 35 seconds.
After washing
The toilet checks all the functions and the status of the “consumable” products; if everything is normal, the toilet returns to the “vacant” state, ready for access by a new visitor!
DESIGN & FITTINGS
- The interior walls are covered with large porcelain stoneware tiles. The tiling is joint-free, extremely resistant and has a Class 0 fire rating
- The floor is made of a single, seamless slab of concrete, made specifically to our design, and painted with a special grey synthetic resin
- The ceiling is painted with breathable white paint

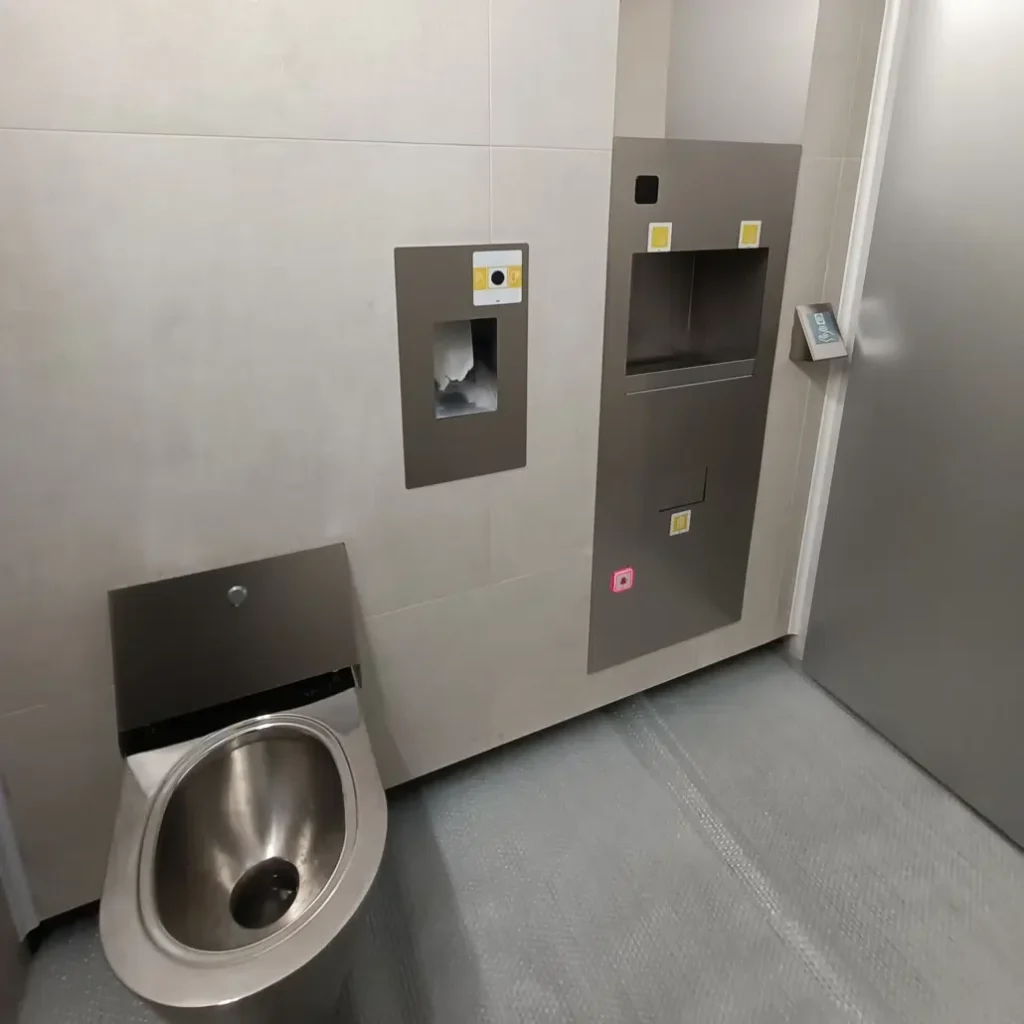

- Ceramic wall-hung bowl (a stainless steel bowl can be installed on request)

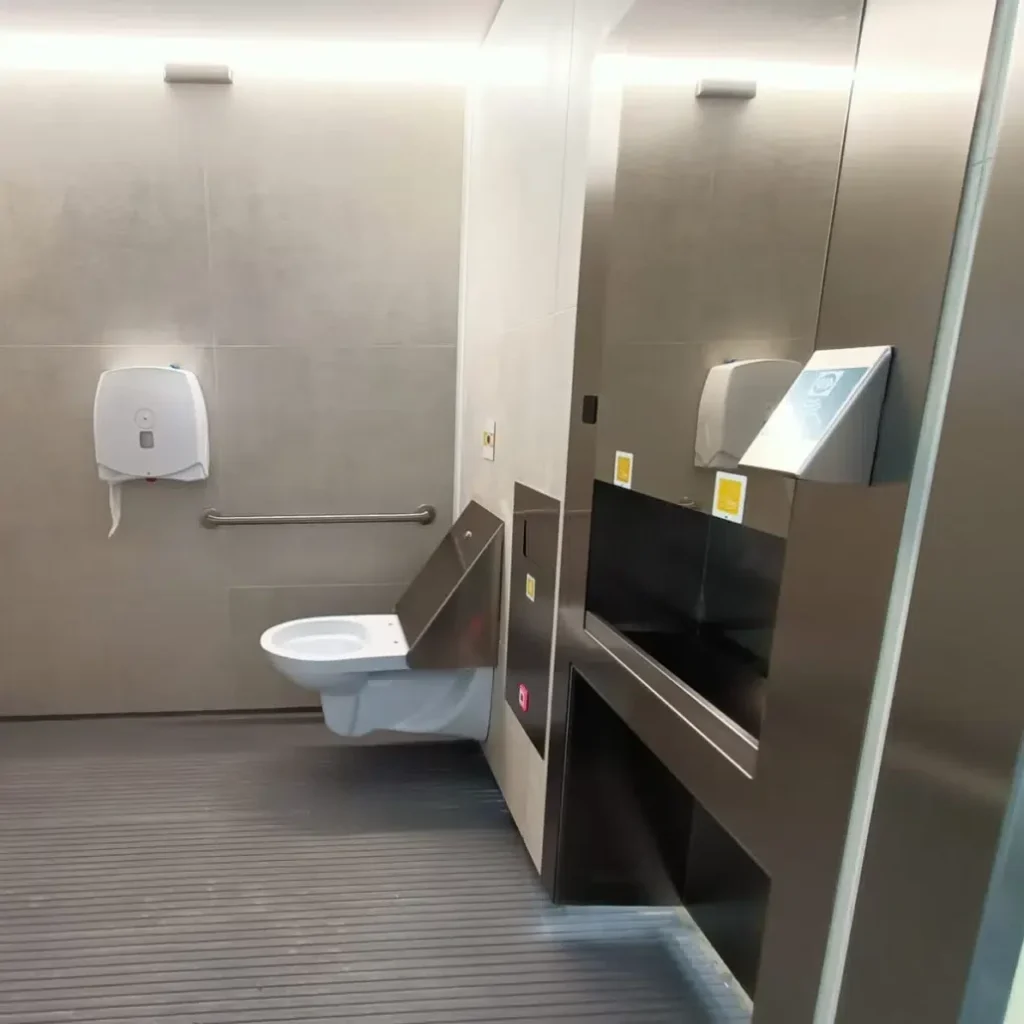

- Wall-mounted stainless steel washbasin with no-touch automatic dispensers for water, soap and hot air, controlled by infrared sensors and a microprocessor that respond to the presence of the visitor’s hands The washbasin for users with disabilities is clear of obstacles, allowing the wheelchair to approach from the front

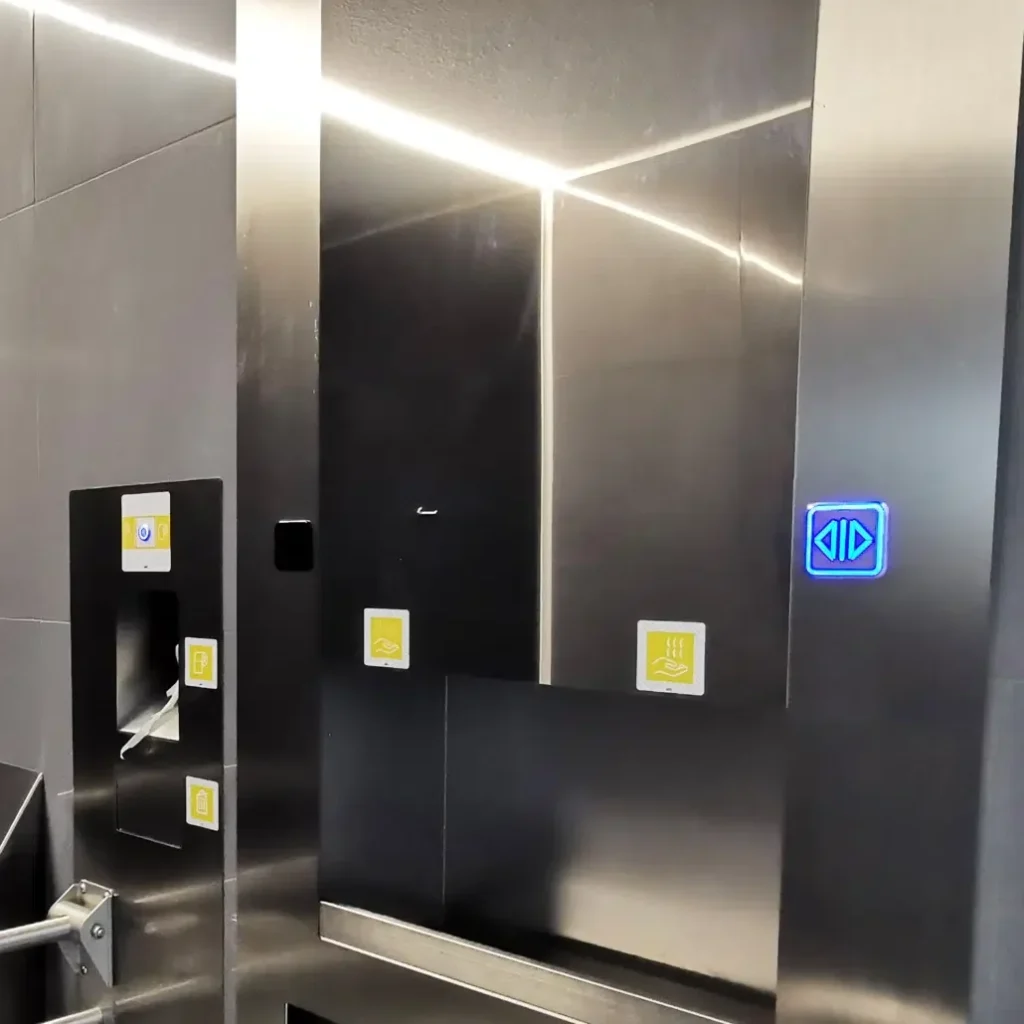

- Vandal-proof stainless steel mirror, coat hooks, disabled grab rails.

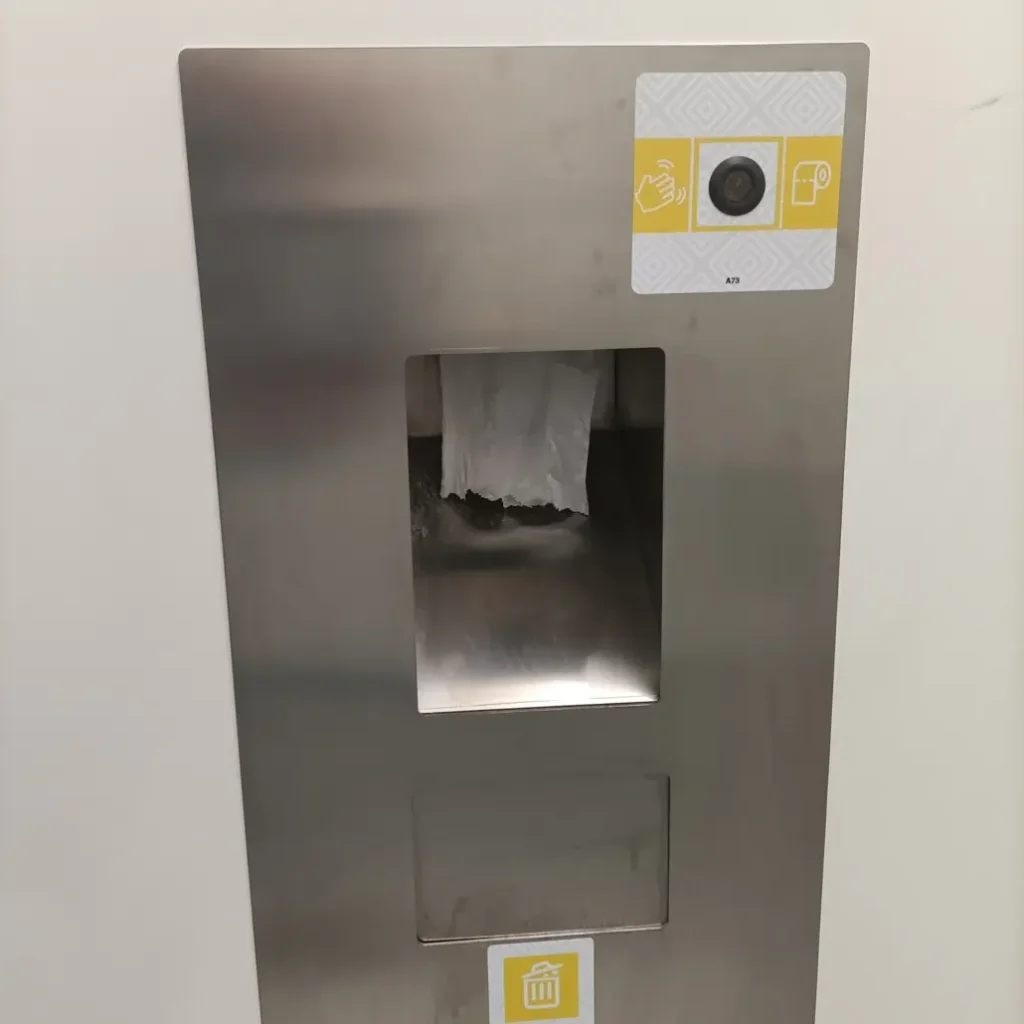

- Fireproof and vandal-proof, no-touch automatic toilet paper dispenser positioned beside the toilet bowl
- Fireproof and vandal-proof wast e bin in stainless steel built into the wall
- Lighting with low consumption LED striplight
Download S5 TECHNOLOGY
S5 TECHNOLOGY
SOLUTIONS
You can select your self-cleaning toilet from our standard models or choose a tailormade solution for your project. The self-cleaning toilets with S3 technology are available in the versions:
Outdoor :
- BRAVO H: self-cleaning toilet accessible also to users with disabilities
- BRAVO HN: block with a toilet accessible to users with disabilities and a unisex toilet
- BRAVO H2N: block with a toilet accessible to users with disabilities and two unisex toilets

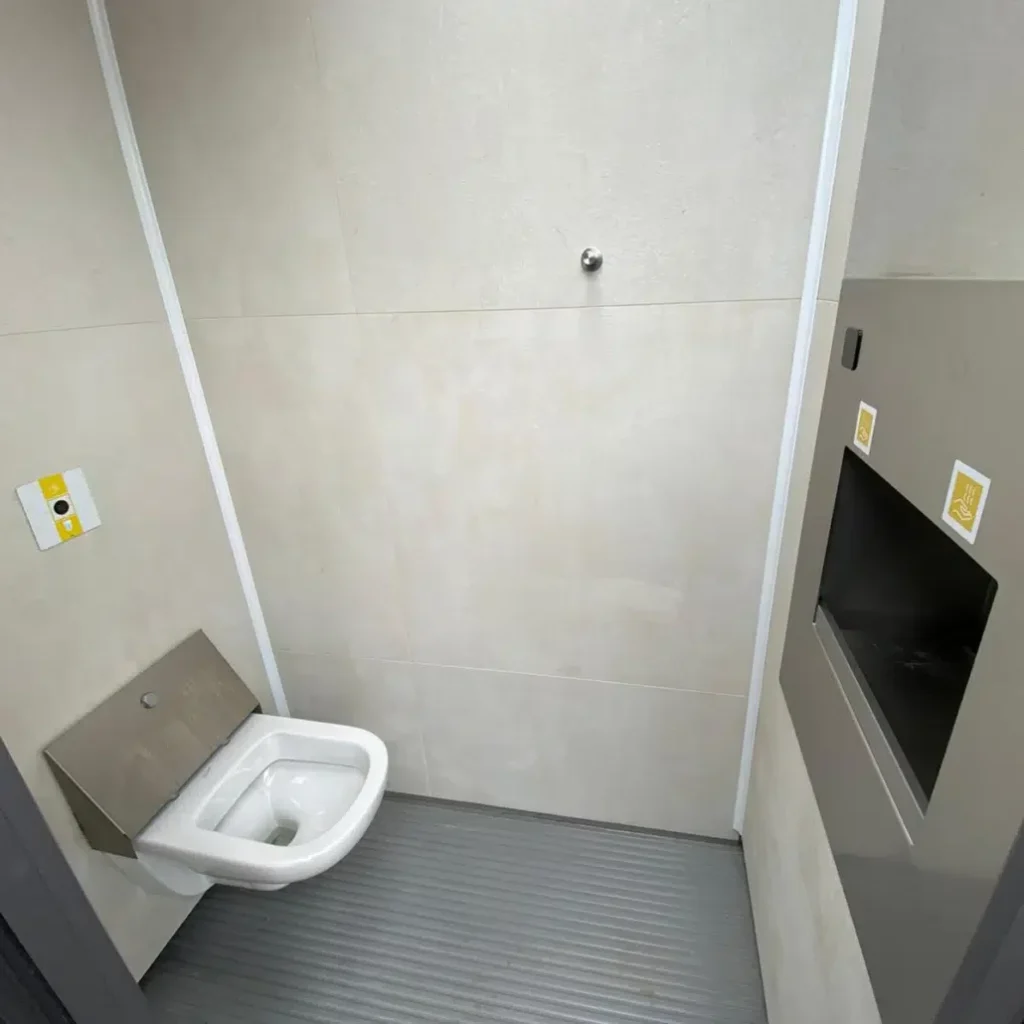

- BIRO: block with one unisex toilet
All outdoor solutions can be integrated with technical areas, bus shelters, storage spaces, showers, etc.
Indoor :
- TECH S3: indoor technology available in H and unisex versions
